RFI 5G Cellular 5.5dBi PRO SERIES Antenna (698-3800 MHz); 5m SMA(M) – Black

$199.00



The CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz) and are ideal for use with cellular modems & active repeaters, especially when signal is poor.

Designed for use with Optus – Telstra – Vodafone



Designed and Manufactured in Australia, Pro-Series antennas feature RFI’s Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.



Use with Cel Fi Roam repeater car signal booster , or mobile phone cradle that has a SMA external antenna connection.

5 metre cable with SMA Connector .

Height [mm] 645
Brand RFI
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Horizontal Beamwidth Omni-directional
Tuned Bandwidth Full. No tuning required
Mounting Area 13-16mm Diameter Hole
VSWR <2.5:1
Polarisation Vertical
Power [W] 10
Cable And Connector 5m of 9006 low loss cable with SMA(M)
Whip Material Fibreglass
Packaging Retail Hang Sell Bag
Colour Black
Antenna Type Collinears, Ground Independent, Meander, Spring Mount, Vehicle
Antenna Application Vehicle Antenna
Family PRO SERIES
Antenna Configuration SISO

The secret to it’s outstanding performance lies in the use of the patented Meander™ radiating elements.

These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.





*This Product is not available for overseas shipping

Description

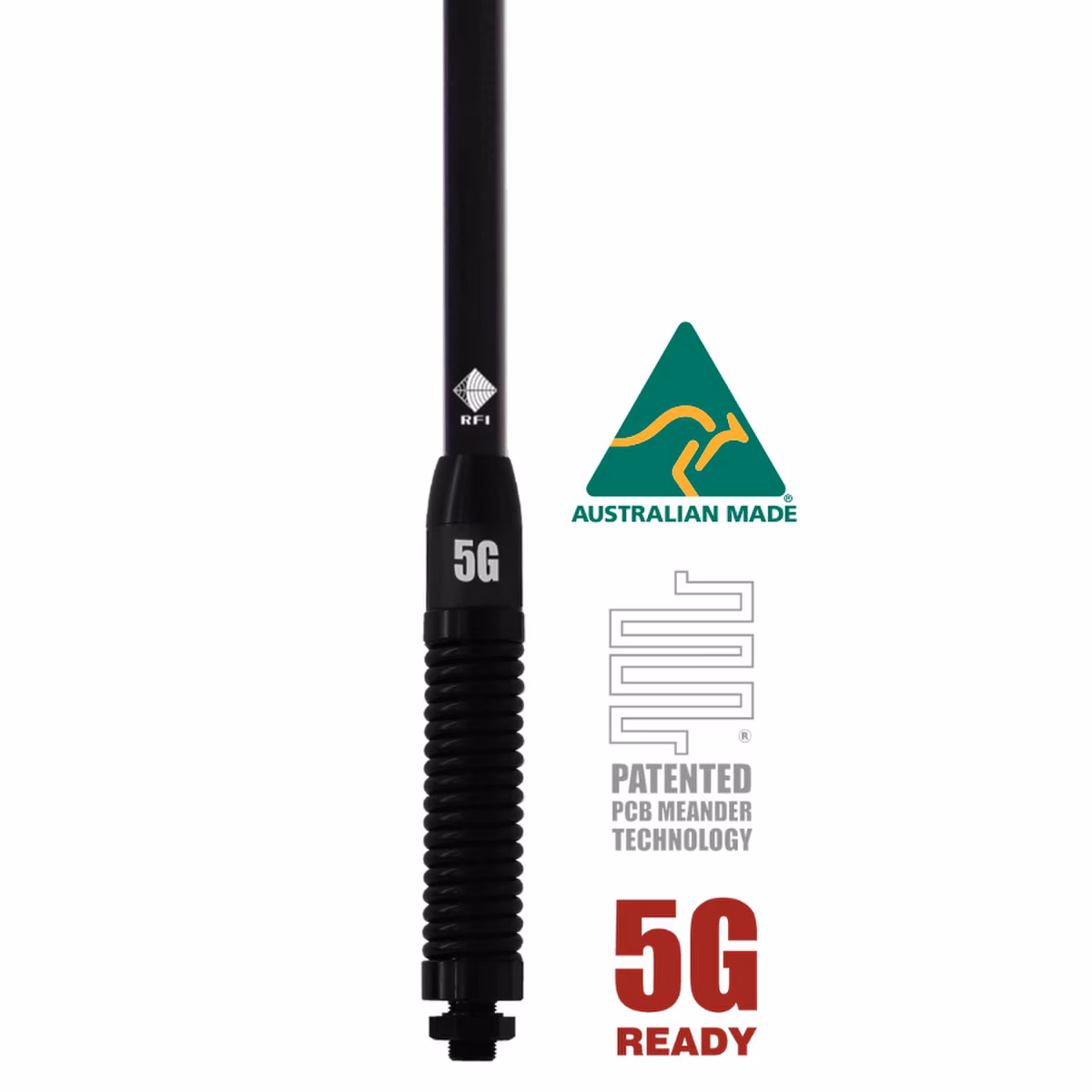

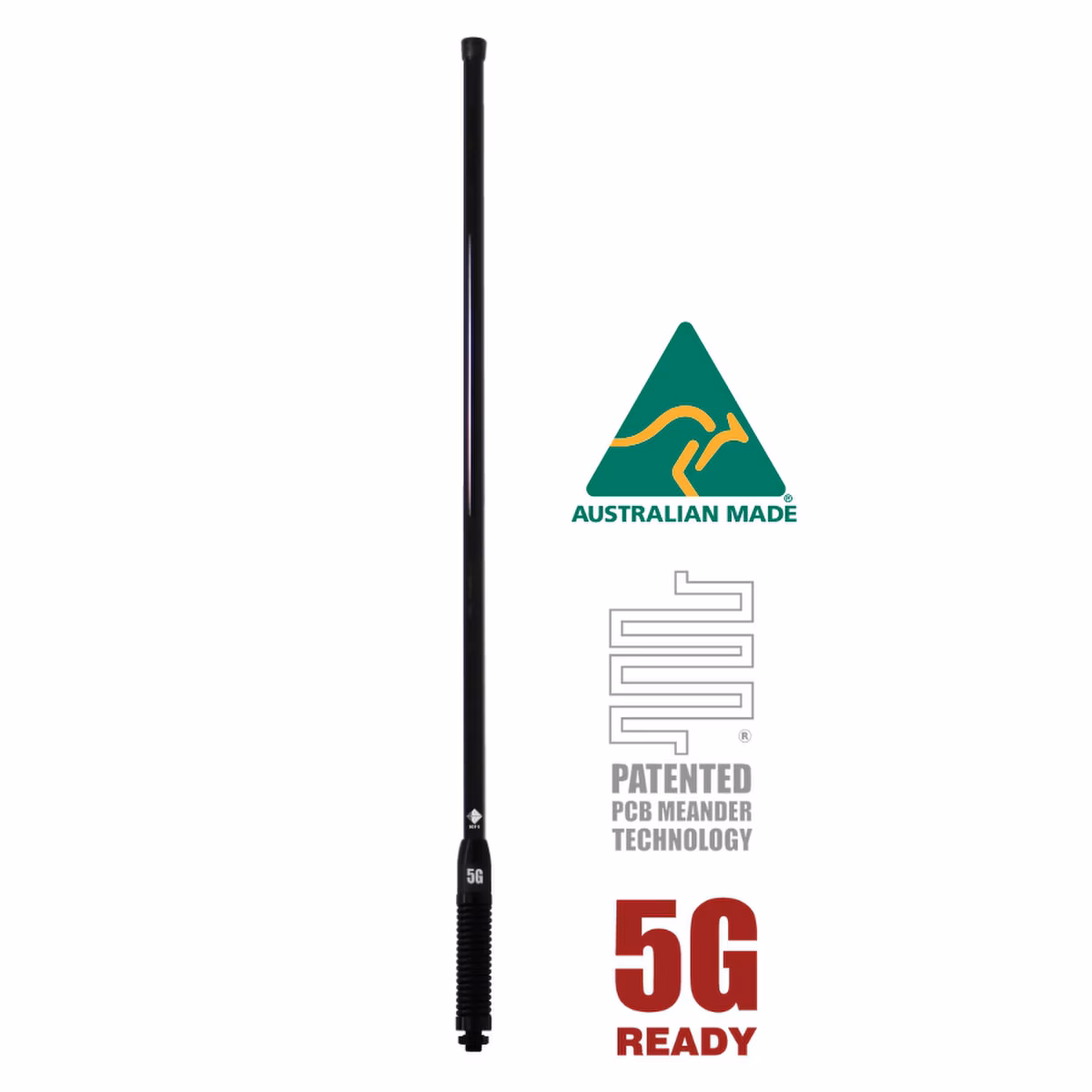

RFI PRO SERIES 5G Cellular 5.5dBi Collinear Antenna (698-3800 MHz)



Black Whip
Spring base with integrated 5m x low-loss flexible cable
SMA male plug connector

Proudly designed and manufactured in Australia




The CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz) and are ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the CD8100 Series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

The CD8100 Series Includes an integrated spring with threaded stud/nut for easy installation on vehicles

Additional Information
Network

Optus, Telstra
