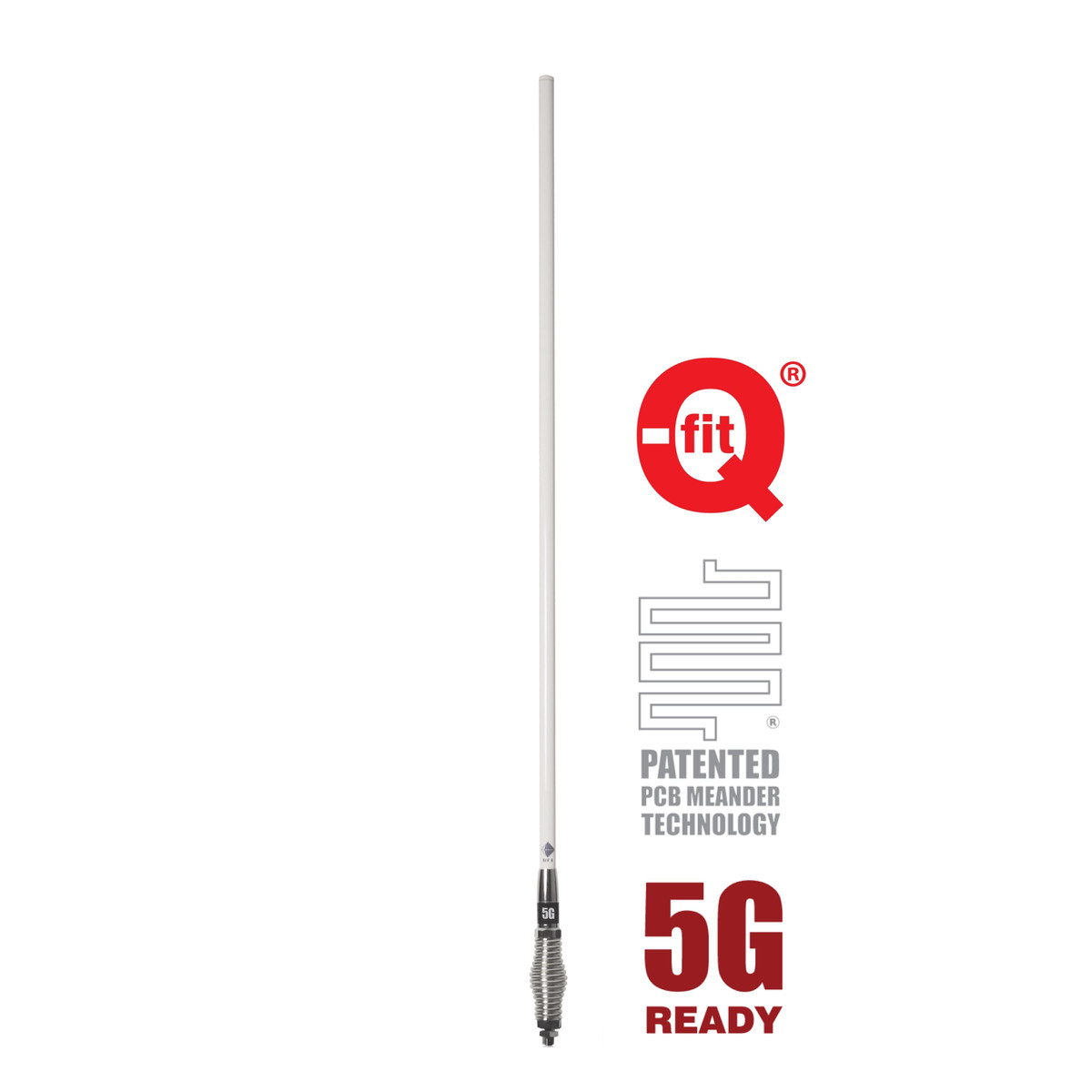

CDR8195 W RFI Elevated Feed Antenna Removable Whip 6.5db 5G 4G White
$199.00
KEY FEATURES:
– Patented PCB based collinear design offering the ultimate in pattern and gain stability.
– Ideal for new 5G/LTE networks with true multi-band coverage
– High gain across all bands making it suiting fringe and rural applications
– Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.
The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
*This Product is not available for overseas shipping
Description
The new CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).
It is ideal for use with cellular modems & active repeaters especially when the signal is poor.
The outstanding performance of the CDR8100 Series lies in the use of the patented Meander® radiating elements. These Meander® circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.
RFI 5G LTE 6.5dBi Collinear Antenna (698-3800 MHz); 5m SMA(M) – White
| Brand | RFI |
| Mounting | 13-16mm mounting hole |
| Length [mm] | 940 |
| Frequency MHz | 698-960 / 1710-2170 / 2300-2700 / 3400-3800 MHz |
| Tuned Bandwidth | Full |
| Radome Diameter Mm | 22-16 |
| VSWR | <2.5:1 |
| Polarisation | Vertical |
| Power [W] | 10 |
| Cable And Connector | 5m of 9006 low loss cable terminated with SMA male connector |
| Whip Material | Fibreglass radome |
| Packaging | Retail Hang Sell |
| Colour | White |
| Antenna Type | Collinears, Ground Independent, Meander, Removeable Whip/Replacement Whip, Spring Mount, Vehicle |
| Antenna Application | Vehicle Antenna |
| Antenna Configuration | SISO |
Additional Information
| Network | Optus, Telstra, Vodafone |
|---|
